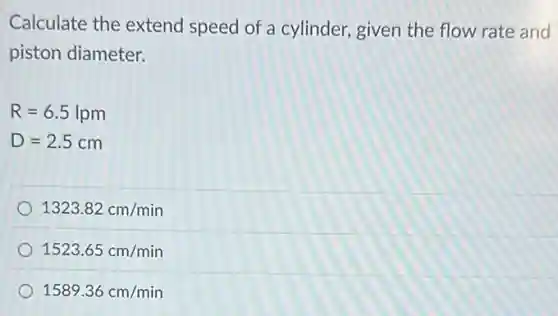

Calculate the extend speed of a cylinder,given the flow rate and piston diameter. R=6.5lpm D=2.5cm 1323.82cm/min 1523.65cm/min 1589.36cm/min

Calculate the extend speed of a cylinder,given the flow rate and piston diameter. R=6.5lpm D=2.5cm 1323.82cm/min 1523.65cm/min 1589.36cm/min
Calculate the extend speed of a cylinder,given the flow rate and
piston diameter.
R=6.5lpm
D=2.5cm
1323.82cm/min
1523.65cm/min
1589.36cm/min

Solution
4.3(265 votes)

Answer

1323.82 cm/min Explanation 1. Convert flow rate to cm³/min R = 6.5 \, \text{lpm} = 6500 \, \text{cm}^3/\text{min} 2. Calculate piston area Area A = \pi \left(\frac{D}{2}\right)^2 = \pi \left(\frac{2.5}{2}\right)^2 = \pi \times 1.25^2 = \pi \times 1.5625 \approx 4.9087 \, \text{cm}^2 3. Calculate extend speed Speed v = \frac{R}{A} = \frac{6500}{4.9087} \approx 1323.82 \, \text{cm/min}

Explanation

1. Convert flow rate to cm³/min<br /> $R = 6.5 \, \text{lpm} = 6500 \, \text{cm}^3/\text{min}$<br /><br />2. Calculate piston area<br /> Area $A = \pi \left(\frac{D}{2}\right)^2 = \pi \left(\frac{2.5}{2}\right)^2 = \pi \times 1.25^2 = \pi \times 1.5625 \approx 4.9087 \, \text{cm}^2$<br /><br />3. Calculate extend speed<br /> Speed $v = \frac{R}{A} = \frac{6500}{4.9087} \approx 1323.82 \, \text{cm/min}$
