QuestionJuly 31, 2025

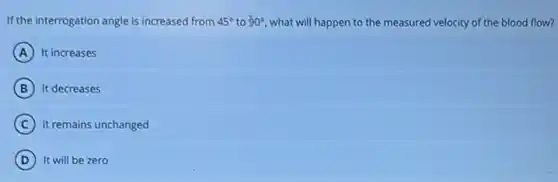

If the interrogation angle is increased from 45^circ to 90^circ what will happen to the measured velocity of the blood flow? A It increases B It decreases C it remains unchanged D It will be zero

If the interrogation angle is increased from 45^circ to 90^circ what will happen to the measured velocity of the blood flow? A It increases B It decreases C it remains unchanged D It will be zero
If the interrogation angle is increased from 45^circ to 90^circ what will happen to the measured velocity of the blood flow? A It increases B It decreases C it remains unchanged D It will be zero

Solution
4.6(249 votes)

Answer

(D) It will be zero Explanation 1. Understand the Doppler Effect in Ultrasound The measured velocity of blood flow using ultrasound is given by **v_m = v \cdot \cos(\theta)**, where v is the actual velocity and \theta is the interrogation angle. 2. Analyze the Change in Angle At \( \theta = 45^{\circ} \), **\cos(45^{\circ}) = \frac{\sqrt{2}}{2}**. At \( \theta = 90^{\circ} \), **\cos(90^{\circ}) = 0**. 3. Determine the Effect on Measured Velocity Increasing the angle to \( 90^{\circ} \) makes **v_m = v \cdot 0 = 0**.

Explanation

1. Understand the Doppler Effect in Ultrasound<br /> The measured velocity of blood flow using ultrasound is given by **$v_m = v \cdot \cos(\theta)$**, where $v$ is the actual velocity and $\theta$ is the interrogation angle.<br /><br />2. Analyze the Change in Angle<br /> At \( \theta = 45^{\circ} \), **$\cos(45^{\circ}) = \frac{\sqrt{2}}{2}$**. At \( \theta = 90^{\circ} \), **$\cos(90^{\circ}) = 0$**.<br /><br />3. Determine the Effect on Measured Velocity<br /> Increasing the angle to \( 90^{\circ} \) makes **$v_m = v \cdot 0 = 0$**.
