QuestionJuly 4, 2025

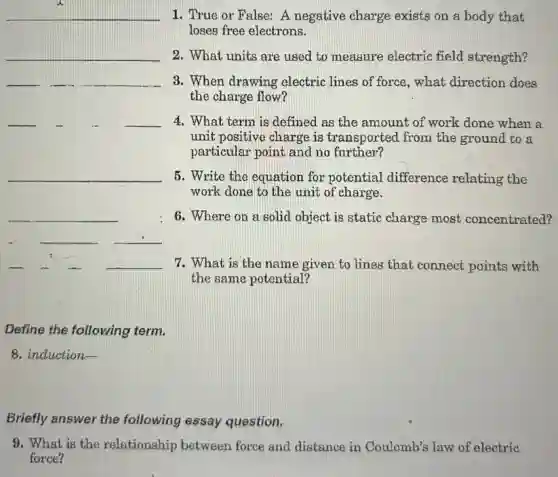

__ 1. True or False:A negative charge exists on a body that loses free electrons. __ 2. What units are used to measure electric field strength? __ 3. When drawing electric lines of force, what direction does __ the charge flow? __ __ 4. What term is defined as the amount of work done when a unit positive charge is transported from the ground to a particular point and no further? __ 5. Write the equation for potential difference relating the work done to the unit of charge. __ 6. Where on a solid object is static charge most concentrated? __ __ __ 7. What is the name given to lines that connect points with the same potential? Define the following term. 8. induction- Briefly answer the following essay question. 9. What is the relationship between force and distance in Coulomb's law of electric force?

__ 1. True or False:A negative charge exists on a body that loses free electrons. __ 2. What units are used to measure electric field strength? __ 3. When drawing electric lines of force, what direction does __ the charge flow? __ __ 4. What term is defined as the amount of work done when a unit positive charge is transported from the ground to a particular point and no further? __ 5. Write the equation for potential difference relating the work done to the unit of charge. __ 6. Where on a solid object is static charge most concentrated? __ __ __ 7. What is the name given to lines that connect points with the same potential? Define the following term. 8. induction- Briefly answer the following essay question. 9. What is the relationship between force and distance in Coulomb's law of electric force?
__ 1. True or False:A negative charge exists on a body that loses free electrons. __ 2. What units are used to measure electric field strength? __ 3. When drawing electric lines of force, what direction does __ the charge flow? __ __ 4. What term is defined as the amount of work done when a unit positive charge is transported from the ground to a particular point and no further? __ 5. Write the equation for potential difference relating the work done to the unit of charge. __ 6. Where on a solid object is static charge most concentrated? __ __ __ 7. What is the name given to lines that connect points with the same potential? Define the following term. 8. induction- Briefly answer the following essay question. 9. What is the relationship between force and distance in Coulomb's law of electric force?

Solution
4.4(198 votes)

Answer

1. False; 2. N/C or V/m; 3. Positive to Negative; 4. Electric Potential; 5. V = \frac{W}{Q}; 6. Sharp Points; 7. Equipotential Lines; 8. Redistribution of charge due to nearby charges; 9. F \propto \frac{1}{r^2}. Explanation 1. Determine the charge on a body losing electrons A body that loses free electrons becomes positively charged. Therefore, the statement is **False**. 2. Identify units for electric field strength Electric field strength is measured in **Newtons per Coulomb (N/C)** or **Volts per meter (V/m)**. 3. Direction of electric lines of force Electric lines of force flow from **positive to negative charges**. 4. Define work done on a unit positive charge The term is **Electric Potential**. 5. Write equation for potential difference The potential difference V is given by **V = \frac{W}{Q}**, where W is work done and Q is charge. 6. Location of static charge concentration Static charge is most concentrated at **sharp points** on a solid object. 7. Name of lines connecting points with same potential These lines are called **Equipotential Lines**. 8. Define induction Induction is the process of **redistributing electrical charge in an object, caused by the influence of nearby charges** without direct contact. 9. Relationship between force and distance in Coulomb's law According to Coulomb's law, the force F between two charges is inversely proportional to the square of the distance r between them: **F \propto \frac{1}{r^2}**.

Explanation

1. Determine the charge on a body losing electrons<br /> A body that loses free electrons becomes positively charged. Therefore, the statement is **False**.<br /><br />2. Identify units for electric field strength<br /> Electric field strength is measured in **Newtons per Coulomb (N/C)** or **Volts per meter (V/m)**.<br /><br />3. Direction of electric lines of force<br /> Electric lines of force flow from **positive to negative charges**.<br /><br />4. Define work done on a unit positive charge<br /> The term is **Electric Potential**.<br /><br />5. Write equation for potential difference<br /> The potential difference $V$ is given by **$V = \frac{W}{Q}$**, where $W$ is work done and $Q$ is charge.<br /><br />6. Location of static charge concentration<br /> Static charge is most concentrated at **sharp points** on a solid object.<br /><br />7. Name of lines connecting points with same potential<br /> These lines are called **Equipotential Lines**.<br /><br />8. Define induction<br /> Induction is the process of **redistributing electrical charge in an object, caused by the influence of nearby charges** without direct contact.<br /><br />9. Relationship between force and distance in Coulomb's law<br /> According to Coulomb's law, the force $F$ between two charges is inversely proportional to the square of the distance $r$ between them: **$F \propto \frac{1}{r^2}$**.
