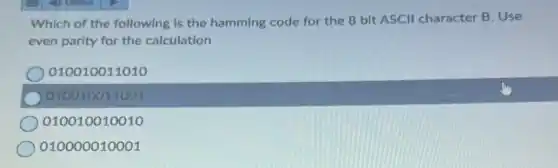

Which of the following is the hamming code for the 8 bit ASCII character B. Use even parity for the calculation 010010011010 010010011001 010010010010 010000010001

Which of the following is the hamming code for the 8 bit ASCII character B. Use even parity for the calculation 010010011010 010010011001 010010010010 010000010001
Which of the following is the hamming code for the 8 bit ASCII character B. Use even parity for the calculation 010010011010 010010011001 010010010010 010000010001

Solution
4.1(275 votes)

Answer

010010010001 Explanation 1. Identify ASCII for 'B' The ASCII code for 'B' is 66, which in binary is 01000010. 2. Determine Hamming Code Structure A 12-bit Hamming code with even parity includes 8 data bits and 4 parity bits. The positions of the parity bits are powers of 2 (1, 2, 4, 8). 3. Place Data Bits Insert the data bits into positions not reserved for parity: _ _ 0 _ 1 0 0 0 _ 1 0. 4. Calculate Parity Bits - **Parity bit 1** covers bits 3, 5, 7, 9, 11: 0 + 1 + 0 + 1 + 0 = 2 (even), so p1 = 0. - **Parity bit 2** covers bits 3, 6, 7, 10, 11: 0 + 0 + 0 + 0 + 0 = 0 (even), so p2 = 0. - **Parity bit 4** covers bits 5, 6, 7, 12: 1 + 0 + 0 + 0 = 1 (odd), so p4 = 1. - **Parity bit 8** covers bits 9, 10, 11, 12: 1 + 0 + 0 + 0 = 1 (odd), so p8 = 1. 5. Construct Final Hamming Code Combine parity and data bits: 010010010001.

Explanation

1. Identify ASCII for 'B'<br /> The ASCII code for 'B' is 66, which in binary is 01000010.<br /><br />2. Determine Hamming Code Structure<br /> A 12-bit Hamming code with even parity includes 8 data bits and 4 parity bits. The positions of the parity bits are powers of 2 (1, 2, 4, 8).<br /><br />3. Place Data Bits<br /> Insert the data bits into positions not reserved for parity: _ _ 0 _ 1 0 0 0 _ 1 0.<br /><br />4. Calculate Parity Bits<br /> <br />- **Parity bit 1** covers bits 3, 5, 7, 9, 11: 0 + 1 + 0 + 1 + 0 = 2 (even), so p1 = 0.<br />- **Parity bit 2** covers bits 3, 6, 7, 10, 11: 0 + 0 + 0 + 0 + 0 = 0 (even), so p2 = 0.<br />- **Parity bit 4** covers bits 5, 6, 7, 12: 1 + 0 + 0 + 0 = 1 (odd), so p4 = 1.<br />- **Parity bit 8** covers bits 9, 10, 11, 12: 1 + 0 + 0 + 0 = 1 (odd), so p8 = 1.<br /><br />5. Construct Final Hamming Code<br /> Combine parity and data bits: 010010010001.
