QuestionSeptember 18, 2025

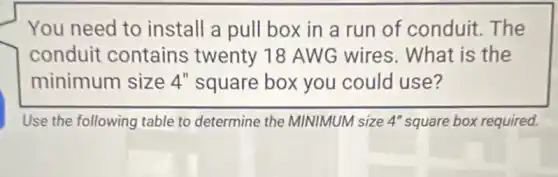

You need to install a pull box in a run of conduit.The conduit contains twenty 18 AWG wires . What is the minimum size 4'' square box you could use? Use the following table to determine the MINIMUM size 4'' square box required.

You need to install a pull box in a run of conduit.The conduit contains twenty 18 AWG wires . What is the minimum size 4'' square box you could use? Use the following table to determine the MINIMUM size 4'' square box required.
You need to install a pull box in a run of conduit.The conduit contains twenty 18 AWG wires . What is the minimum size 4'' square box you could use? Use the following table to determine the MINIMUM size 4'' square box required.

Solution
4.3(261 votes)

Answer

4'' \times 4'' \times 3\frac{1}{2}'' (54 in³) box Explanation 1. Find box fill allowance for 18 AWG wire NEC Table 314.16(B) gives 2.0\ \text{in}^3 per 18 AWG conductor. 2. Calculate total volume required 20 \times 2.0\ \text{in}^3 = 40\ \text{in}^3 3. Check standard 4'' square box sizes Common 4'' square boxes have depths of 1\frac{1}{2}'', 2\frac{1}{8}'', 2\frac{1}{2}'', and 3\frac{1}{2}''. Their volumes are: - 1\frac{1}{2}'': 21\ \text{in}^3 - 2\frac{1}{8}'': 30.3\ \text{in}^3 - 2\frac{1}{2}'': 35\ \text{in}^3 - 3\frac{1}{2}'': 54\ \text{in}^3 4. Select the minimum size meeting requirement Only the 3\frac{1}{2}'' deep box (54\ \text{in}^3) meets or exceeds 40\ \text{in}^3.

Explanation

1. Find box fill allowance for 18 AWG wire<br /> NEC Table 314.16(B) gives $2.0\ \text{in}^3$ per 18 AWG conductor.<br />2. Calculate total volume required<br /> $20 \times 2.0\ \text{in}^3 = 40\ \text{in}^3$<br />3. Check standard $4''$ square box sizes<br /> Common $4''$ square boxes have depths of $1\frac{1}{2}''$, $2\frac{1}{8}''$, $2\frac{1}{2}''$, and $3\frac{1}{2}''$. Their volumes are:<br />- $1\frac{1}{2}''$: $21\ \text{in}^3$<br />- $2\frac{1}{8}''$: $30.3\ \text{in}^3$<br />- $2\frac{1}{2}''$: $35\ \text{in}^3$<br />- $3\frac{1}{2}''$: $54\ \text{in}^3$<br />4. Select the minimum size meeting requirement<br /> Only the $3\frac{1}{2}''$ deep box ($54\ \text{in}^3$) meets or exceeds $40\ \text{in}^3$.
