QuestionJuly 17, 2025

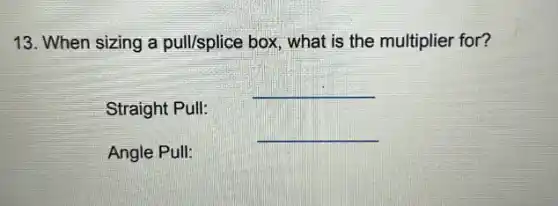

13. When sizing a pull/splice box, what is the multiplier for? Straight Pull: Angle Pull:

13. When sizing a pull/splice box, what is the multiplier for? __ Straight Pull: __ Angle Pull:

Solution
4.6(237 votes)

Answer

Straight Pull: 8 ### Angle Pull: 6 Explanation 1. Determine Multiplier for Straight Pull For straight pulls, the multiplier is **8** times the trade size of the largest conduit. 2. Determine Multiplier for Angle Pull For angle pulls, the multiplier is **6** times the trade size of the largest conduit plus the sum of the diameters of all other conduits on the same wall.

Explanation

1. Determine Multiplier for Straight Pull<br /> For straight pulls, the multiplier is **8** times the trade size of the largest conduit.<br /><br />2. Determine Multiplier for Angle Pull<br /> For angle pulls, the multiplier is **6** times the trade size of the largest conduit plus the sum of the diameters of all other conduits on the same wall.
