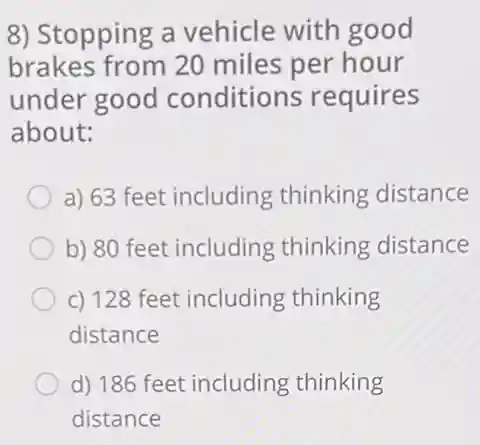

8) Stopping a vehicle with good brakes from 20 miles per hour under good conditions requires about: a) 63 feet including thinking distance b) 80 feet including thinking distance c) 128 feet including thinking distance d) 186 feet including thinking distance

8) Stopping a vehicle with good brakes from 20 miles per hour under good conditions requires about: a) 63 feet including thinking distance b) 80 feet including thinking distance c) 128 feet including thinking distance d) 186 feet including thinking distance
8) Stopping a vehicle with good brakes from 20 miles per hour under good conditions requires about: a) 63 feet including thinking distance b) 80 feet including thinking distance c) 128 feet including thinking distance d) 186 feet including thinking distance

Solution
4.2(240 votes)

Answer

a) 63 feet including thinking distance Explanation 1. Convert Speed to Feet per Second 20 miles per hour is converted to feet per second using the formula: \text{Speed (fps)} = \text{Speed (mph)} \times \frac{5280}{3600} . Thus, 20 \times \frac{5280}{3600} = 29.33 feet per second. 2. Calculate Stopping Distance The stopping distance includes both thinking and braking distances. Assuming average reaction time of 1.5 seconds, the thinking distance is 29.33 \times 1.5 = 44 feet. 3. Calculate Braking Distance Using the formula for braking distance: d = \frac{v^2}{2g\mu}, where v = 29.33 fps, g = 32.2 ft/s² (acceleration due to gravity), and \mu = 0.7 (friction coefficient for good brakes), we find d = \frac{(29.33)^2}{2 \times 32.2 \times 0.7} = 19 feet. 4. Total Stopping Distance Add thinking and braking distances: 44 + 19 = 63 feet.

Explanation

1. Convert Speed to Feet per Second<br /> 20 miles per hour is converted to feet per second using the formula: $ \text{Speed (fps)} = \text{Speed (mph)} \times \frac{5280}{3600} $. Thus, $20 \times \frac{5280}{3600} = 29.33$ feet per second.<br /><br />2. Calculate Stopping Distance<br /> The stopping distance includes both thinking and braking distances. Assuming average reaction time of 1.5 seconds, the thinking distance is $29.33 \times 1.5 = 44$ feet.<br /><br />3. Calculate Braking Distance<br /> Using the formula for braking distance: $d = \frac{v^2}{2g\mu}$, where $v = 29.33$ fps, $g = 32.2$ ft/s² (acceleration due to gravity), and $\mu = 0.7$ (friction coefficient for good brakes), we find $d = \frac{(29.33)^2}{2 \times 32.2 \times 0.7} = 19$ feet.<br /><br />4. Total Stopping Distance<br /> Add thinking and braking distances: $44 + 19 = 63$ feet.
