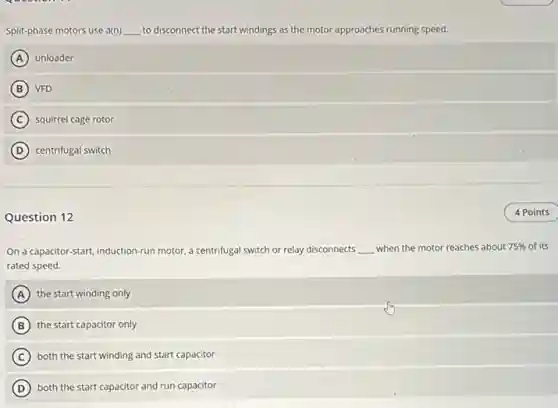

Split-phase motors use a(n) __ to disconnect the start windings as the motor approaches running speed. A unloader B VFD C squirrel cage rotor D centrifugal switch Question 12 On a capacitor-start,induction-run motor, a centrifugal switch or relay disconnects __ when the motor reaches about 75% of its rated speed. A the start winding only B the start capacitor only C both the start winding and start capacitor D both the start capacitor and run capacitor
