When the unison ring in a variable nozzle (VN) type turbocharger is moved, which of the following changes? vane pitch pulse frequency inlet flow area bypass flow area

When the unison ring in a variable nozzle (VN) type turbocharger is moved, which of the following changes? vane pitch pulse frequency inlet flow area bypass flow area

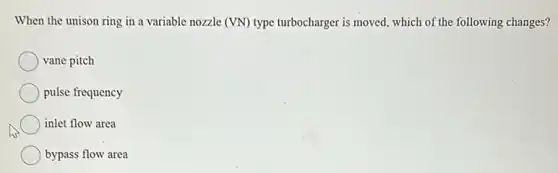

When the unison ring in a variable nozzle (VN) type turbocharger is moved, which of the following changes?
vane pitch
pulse frequency
inlet flow area
bypass flow area

Solution
3.9(313 votes)

Answer

vane pitch ### inlet flow area Explanation 1. Identify the effect of unison ring movement The unison ring in a VN turbocharger adjusts the position of the vanes, which changes the **vane pitch** and consequently alters the **inlet flow area**. 2. Eliminate unrelated options The unison ring does not directly affect pulse frequency or bypass flow area, as these are unrelated to vane adjustments.

Explanation

1. Identify the effect of unison ring movement<br /> The unison ring in a VN turbocharger adjusts the position of the vanes, which changes the **vane pitch** and consequently alters the **inlet flow area**.<br /><br />2. Eliminate unrelated options<br /> The unison ring does not directly affect pulse frequency or bypass flow area, as these are unrelated to vane adjustments.
