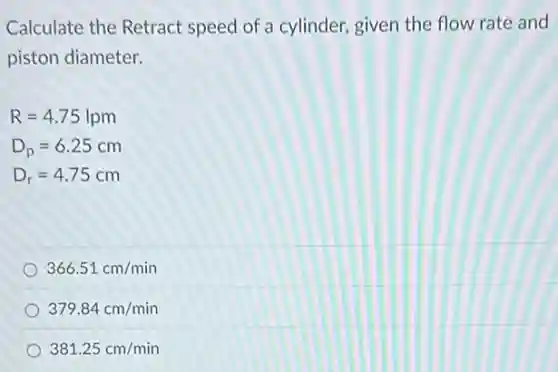

Calculate the Retract speed of a cylinder,given the flow rate and piston diameter. R=4.75lpm D_(p)=6.25cm D_(r)=4.75cm 366.51cm/min 379.84cm/min 381.25cm/min

Calculate the Retract speed of a cylinder,given the flow rate and piston diameter. R=4.75lpm D_(p)=6.25cm D_(r)=4.75cm 366.51cm/min 379.84cm/min 381.25cm/min
Calculate the Retract speed of a cylinder,given the flow rate and piston diameter. R=4.75lpm D_(p)=6.25cm D_(r)=4.75cm 366.51cm/min 379.84cm/min 381.25cm/min

Solution
4.1(217 votes)

Answer

379.84 \, \text{cm/min} Explanation 1. Convert flow rate to cm³/min Given R = 4.75 \, \text{lpm}, convert to \text{cm}^3/\text{min}: R = 4.75 \times 1000 = 4750 \, \text{cm}^3/\text{min}. 2. Calculate piston area Piston diameter D_p = 6.25 \, \text{cm}. Area A_p = \pi \left(\frac{D_p}{2}\right)^2 = \pi \left(\frac{6.25}{2}\right)^2. 3. Calculate rod area Rod diameter D_r = 4.75 \, \text{cm}. Area A_r = \pi \left(\frac{D_r}{2}\right)^2 = \pi \left(\frac{4.75}{2}\right)^2. 4. Calculate effective area for retraction Effective area A_e = A_p - A_r. 5. Calculate retract speed **Formula**: V = \frac{R}{A_e}. Substitute R = 4750 \, \text{cm}^3/\text{min} and A_e from previous steps.
